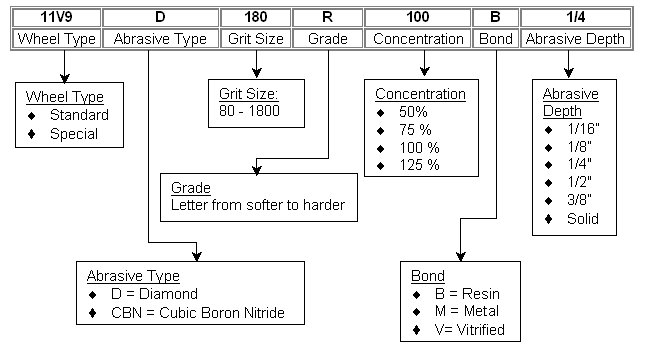

Grinding Wheel Specification




TYPE 11A2 FLARING CUP WHEELS - DIAMOND / CBN IN RIM
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required *
W = Rim Width
E = Back Thickness
K= Inside Flat Diameter
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

3 x 7/8 x 1-1/4
4 x 1/4 x 1-1/4
5 x 1-1/4 x 1-1/4
5 x 1-3/4 x 1-1/4
6 x1-1/2 x 1-1/4
6 x 1-11/16 x 1-1/4

TOP



TYPE 11V9 FLARING CUP WHEELS - DIAMOND / CBN IN PERIPHERY
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required *
E = Back Thickness
K = Inside Flat Diameter
B = Approximate Back Angle
U = Abrasive Length
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

3 x 1-1/4 x 3/4
3-3/4 x 1-1/2 x 3/4
3-3/4 x 1-1/2 x1-1/4
5 x 1-1/2 x 1-1/4
5 x 1-3/4 x 1-1/4

TOP

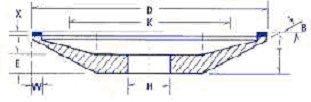

TYPE 12A2 DISH WHEELS - DIAMOND / CBN IN RIM
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required*
W = Rim Width
E = Back Thickness
K = Inside Flat Dia.
B = Dish Angle
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

4 x 1/2 x 1-1/4
6 x 1 x 1-1/4

TOP



TYPE 12V9 DISH WHEELS - DIAMOND / CBN IN PERIPHERY
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required*
U = Length of Insert
E = Back Thickness
B = Approximate Back Angle
K = Inside Flat Dia.
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

3 x 7/16 x 3/4
3-3/4 x 1/2 x 1-1/4
4 x 1/2 x 1-1/45 x 3/4 x 1
5 x 3/4 x 1-1/4
6 x 3/4 x 1-1/4

TOP



TYPE 14A1 STRAIGHT WHELLS WITH HUB ON EACH SIDE
- DIAMOND / CBN IN PERIPHERY
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required*
J = Hub Diameter
U = Abrasive Thickness
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

5 x 1/2 x 1-1/4
5 x 1/4 x 1-1/4

TOP



TYPE 15A2 DISH WHELLS - DIAMOND / CBN IN RIM
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required*
W = Rim Width
E = Back Thickness
K = Inside Flat Dia.B =
Dish Angle
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

6 x 3/4 x 1-1/4

TOP



TYPE 15V9 DISH WHELLS - DIAMOND / CBN IN PERIPHERY
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required*
U = Length of Insert
E = Back Thickness
K = Inside Flat Diameter
B = Approximate Back Angle
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

3 x 1/2 x 1-1/4
4 x 3/4 x 1-1/4
6 x 3/4 x 1-1/4

TOP



TYPE 1A1 STRAIGHT WHEELS - DIAMOND / CBN IN PERIPHERY
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required *
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

1 x 1/4 x 1/4
2 x 1/2 x 1/2
3 x 1/8 x 3/4
4 x 1/2 x 1-1/4
5 x 1/4 (1/2) x 1-1/4
6 x 1/8 (1/4, 1/2) x 1-1/4
7 x 1/8 (1/4, 1/2) x 1-1/4
8 x 1/8 (1/4, 1/2) x 1-1/4
10 x 1/4 (1/2) x 1-1/4
12 x 1/4 (1/2) x 1-1/4
14 x 1/4 (1/2) x 1-1/4
16 x 1/4 (1/2) x 1-1/4
350mm x 12.7mm x 127mm

X = 1/8, 1/4

TOP




TYPE 1A1R CUT-OFF WHEELS - DIAMOND / CBN CONTINUOUS RIM
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required *
X = Abrasive Depth
E = Back Thickness
IN STOCK SIZES (DXTXH)

3 x .20 x 1/2
4 x .012 x 1/2
4 x 1/32 x 3/4
6 x .045 x 1-1/4
6 x 0.8mm x 1-1/4
8 x .045 x 5/8

X = 1/8, 1/4

TOP



TYPE 1EE1 STRAIGHT "EE" FACE WHEELS
- DIAMOND / CBN IN PERIPHERY
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required
V = Included Angle
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

3 x 1/8 x 1-1/4
3 x 1/4 x 1-1/4
4 x 1/8 x 1-1/4
4 x 1/4 x 1-1/4
6 x 1/8 x 1-1/4
6 x 1/4 x 1-1/4

TOP



TYPE 1FF1 STRAIGHT "FF" FACE WHEELS
- DIAMOND / CBN IN PERIPHERY
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required
R = Radius on Face
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

3 x 1/8 x 1-1/4
3 x 1/4 x 1-1/4
4 x 1/8 x 1-1/4
4 x 1/4 x 1-1/4
6 x 3/16 x 1-1/4
6 x 1/4 x 1-1/4
6 x 5/16 x 1-1/4

TOP



TYPE 1V1 STRAIGHT "V" FACE WHEELS
- DIAMOND / CBN IN PERIPHERY
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required
V = Face angle
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

4 x 1/4 x 1-1/4
4 x 1/2 x 1-1/4
5 x 1/2 x 1-1/4
5 x 1/4 x 1-1/4

TOP



TYPE 2A2T CYLINDER-THREAD MOUNTING HOLES WHEELS
- DIAMOND / CBN IN RIM
D = Wheel Diameter
T = Wheel Thickness
W = Rim Width
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

11 x 1-1/4 x
280mm x 31.75mm x 228.6mm
350mm x 12.7mm x 127mm

TOP



TYPE 3A1 STRAIGHT WHEELS - DIAMOND / CBN IN PERIPHERY
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required
X = Abrasive Depth
U = Abrasive Thickness
IN STOCK SIZES (DXTXH)

TOP


;
TYPE 4A2P DISH WHEELS - DIAMOND / CBN IN PERIPHERY
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required*
J = Back Flat Diameter
W = Rim Width
E = Back Thickness
X = Abrasive Depth
Z = Preform Thickness at Rim
IN STOCK SIZES (DXTXH)

6 x 1/4 x 1-1/4
6 x 3/8 x 1-1/4

TOP

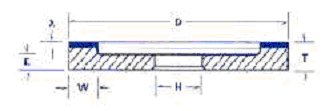

TYPE 6A2 PLAIN CUP WHEELS - DIAMOND / CBN IN PERIPHERY
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required*
W = Rim Width
E = Back Thickness
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

6 x 1 x 1-1/4
6 x 3/4 x 1-1/4

TOP



TYPE 6A2C PLAIN CUP WITH COUNTERSUNK BOLT HOLES WHEELS
- DIAMOND / CBN IN RIM
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required*
W = Rim Width
E = Back Thickness
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

6 x 7/16 x 1-1/4
6 x 3/4 x 1-1/4

TOP

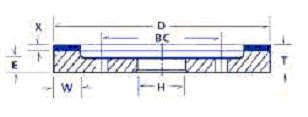

TYPE 6A2H PLAIN CUP WITH BOLT HOLES WHEELS
- DIAMOND / CBN IN RIM
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required*
W = Rim Width
E = Back Thickness
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

5 x 1 x 1-1/4

TOP



TYPE 6A9 PLAIN CUP WHEELS - DIAMOND / CBN IN PERIPHERY
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required*
E = Back Thickness
K = Inside Flat Diameter
U = Insert Length
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

3 x 1-1/2 x 1-1/4
4 x 3/4 x 1-1/4
4 x 1-1/4 x 1-1/4
6 x 1-1/2 x 1-1/4

TOP

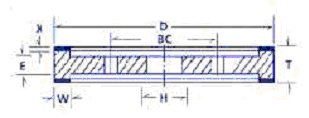

TYPE 9A3H DUAL FACE STYLE WHEELS - DIAMOND / CBN IN RIM
D = Wheel Diameter
T = Wheel Thickness
H = Hole Diameter as required*
W = Rim Width
E = Back Thickness
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

6 x 1 x 1-1/4
7 x 1 x 1-1/4

TOP



TYPE DW MOUNTED ON MANDREL WHEELS - DIAMOND / CBN THROUGHOUT
D = Wheel Diameter
T = Wheel Thickness
Y = Spindle Diameter
SP = Spindle Length
IN STOCK SIZES (DXTXH)

TOP



TYPE HH1 STRAIGHT WHEELS - DIAMOND / CBN IN PERIPHERY
L = Length
L1 = Length of Abrasive
W = Width
T = Back Thickness
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

TOP



TYPE HH2 STRAIGHT WHEELS - DIAMOND / CBN IN PERIPHERY
L = Length
L1 = Length of Abrasive
W = Width
T = Back Thickness
X = Abrasive Depth
IN STOCK SIZES (DXTXH)

TOP
